| 현재위치 : 핸들 >> 노브 손잡이 |
   |
| 제 품 명 : BK1040 빼구오각볼트 ( 제품번호 : 2640 ) |
|
 |

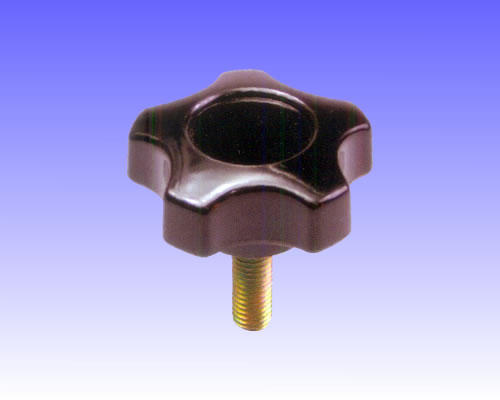

BK1040 빼구오각노브 볼트형
재질 : Bakelite(멜라민수지), 철
색상 : 흑색 |

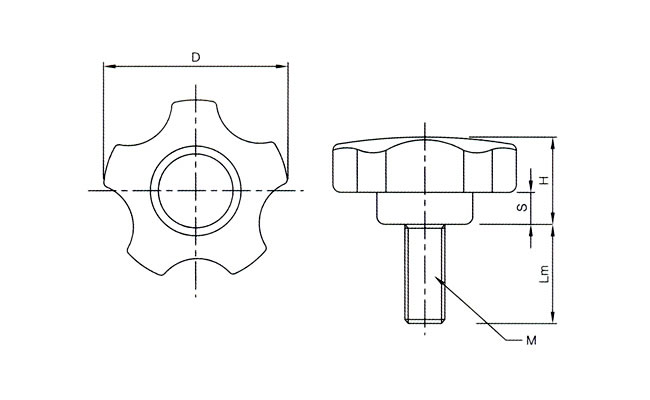

사양
| TYPE |
D |
H |
S |
d |
M |
Lm |
| BK1040-46-M6 |
46 |
22 |
8 |
24 |
M6*1.0 |
15, 20, 25, 30, 40 |
| BK1040-46-M8 |
46 |
22 |
8 |
24 |
M8*1.25 |
15, 20, 25, 30, 40, 50 |
| BK1040-46-M10 |
46 |
22 |
8 |
24 |
M10*1.5 |
20, 25, 30, 40, 50 |
| BK1040-58-M8 |
58 |
27 |
9 |
26 |
M8*1.25 |
20, 25, 30, 40, 50 |
| BK1040-58-M10 |
58 |
27 |
9 |
26 |
M10*1.5 |
15, 20, 25, 30, 40, 50 |
| BK1040-58-M12 |
58 |
27 |
9 |
26 |
M12*1.75 |
20, 25, 30, 40, 50 |
|
|
| |
